Description
| Essential details | |||
| Place of Origin: | Shandong, China | Brand Name: | Mattson |
| Condition: | New | Warranty: | 1 Year |
| Dimension(L”W*H) | 2114*1100*1505mm | Power: | 36.5kw |
| Applicable Industries: | Manufacturing Plant, Farms, Home Use, Construction. | Weight (KG): | 1140 kg |
| Video outgoing-inspection: | Provided | Warranty of core components: | 1 Year |
| Core Components: | Engine, Motor, Pump | Hydraulic Pump Brand: | Permco |
| Hydraulic Valve Brand: | Hydro control | Engine Brand: | Kubota |

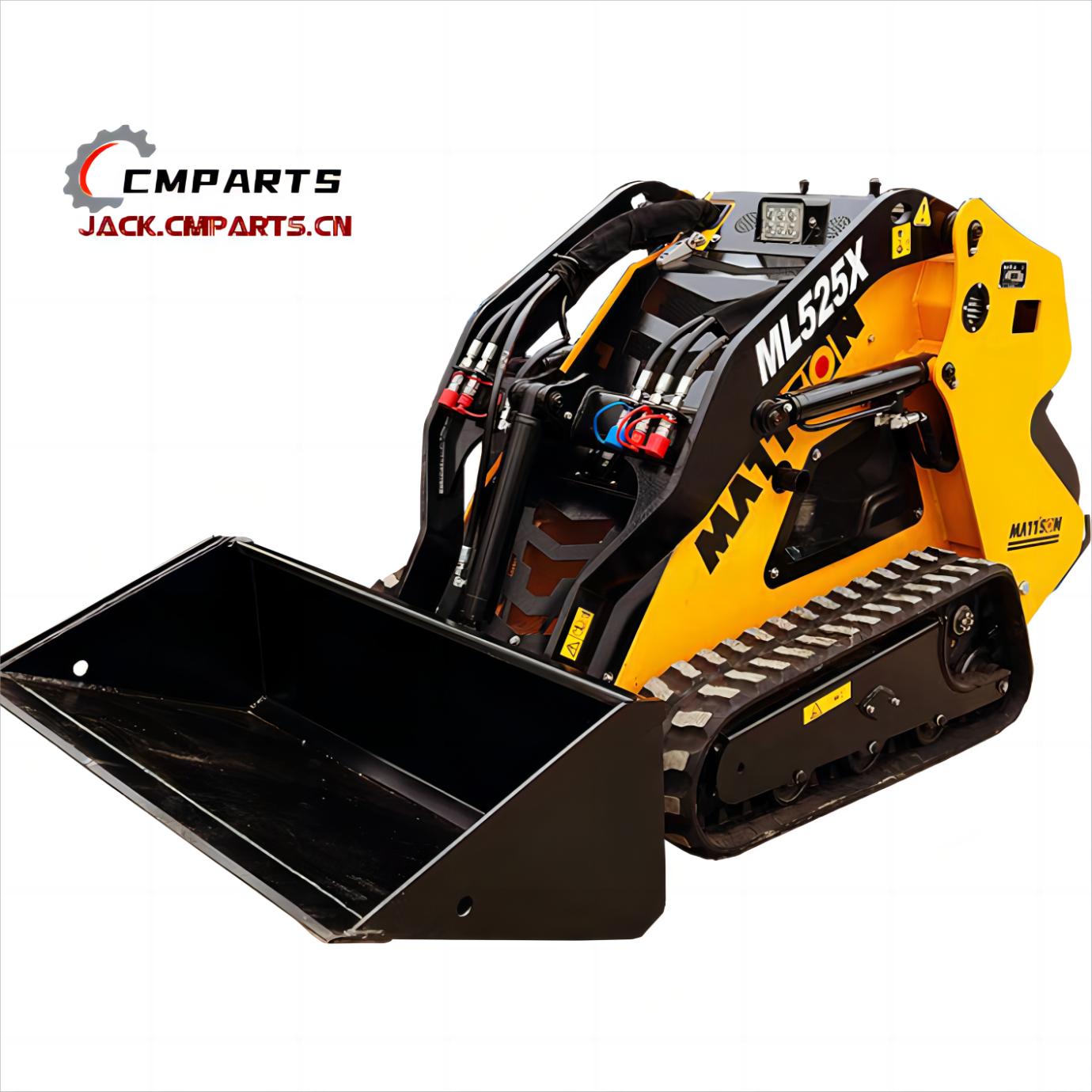

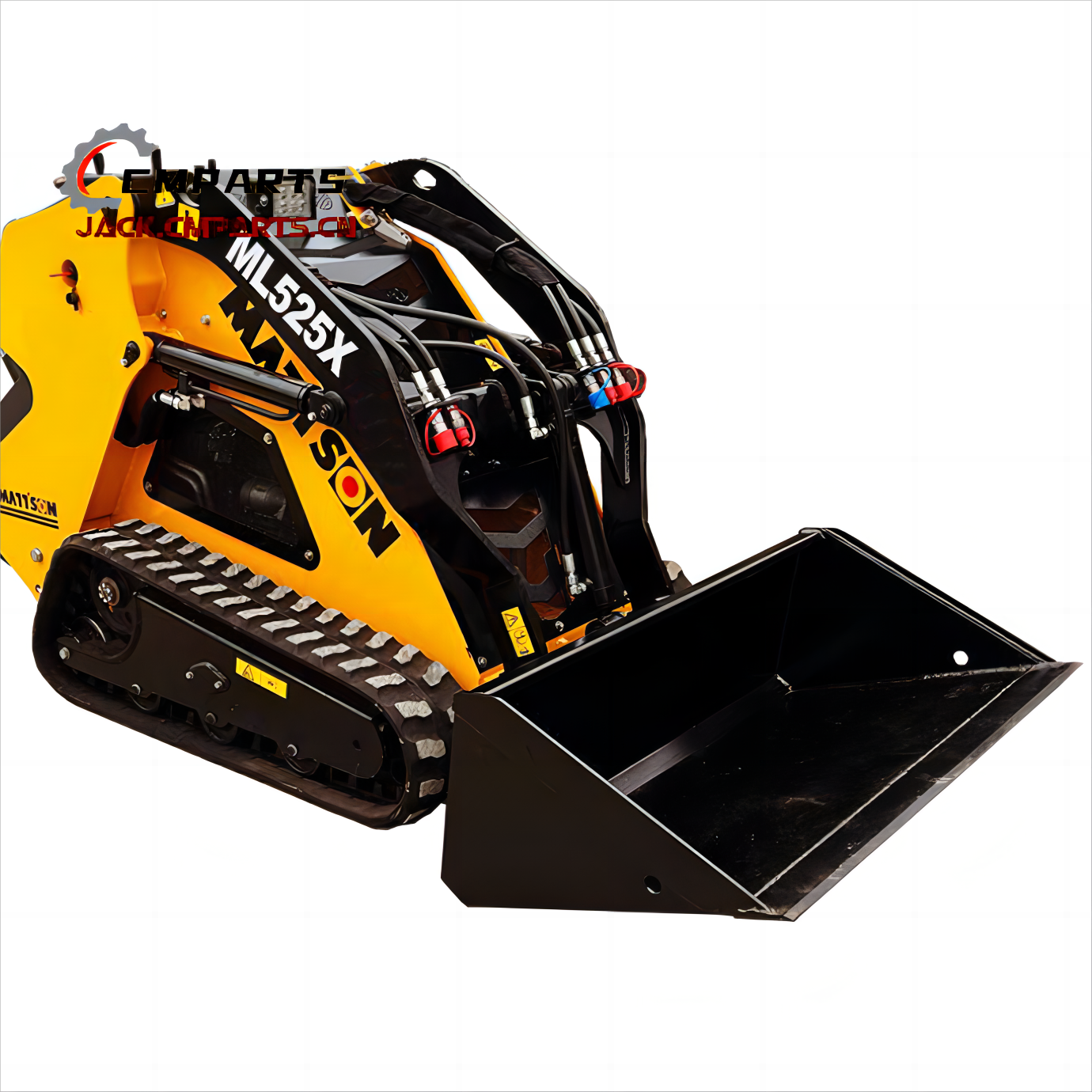

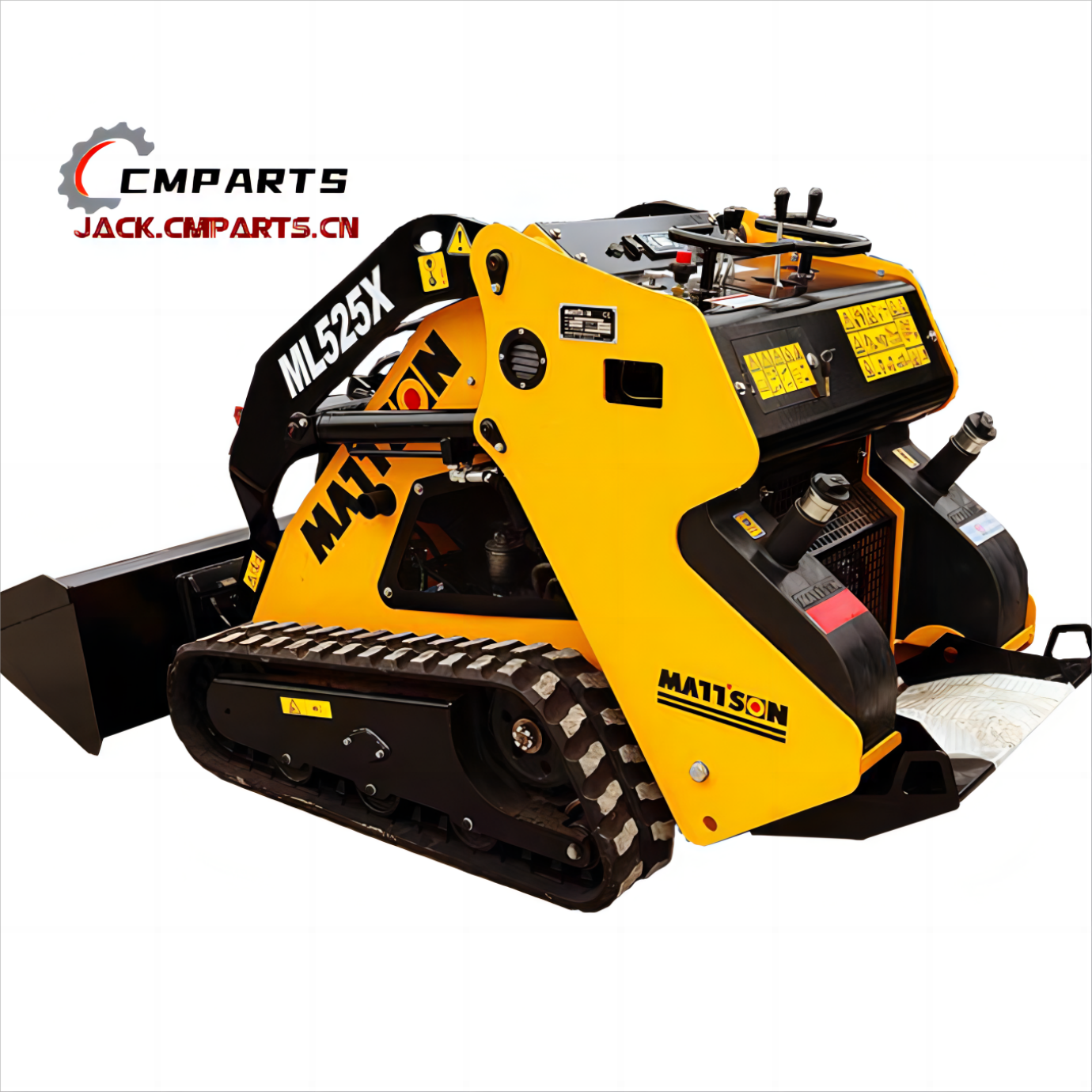

| Product name. | Mini Skid Steer Loader | UNIQUE SELLING POINT: | EPA Engine |
| Brand: | Mattson | Model: | ML525X |
| Color: | Request | Rated Power | 18.5KW |
| Transmission | Hydrostatic Track Drive System | Hydraulic Flow. | 53.4L/Min |
| Certification | CE EPA | ||
| ML525X Mini Truck Loader Specifications Dimensions | |
| D.Dump Height with Standard Bucket | 1270 mm |
| H.Height to Bucket Hinge Pin | 1879 mm |
| l.Height | 1257 mm |
| J.Length withhaut Attacmert | 1942 mm |
| K Length with Standard Bucket | 2603 mm |
| Q.Width | 1050 mm |
| PRODUCT SPECIFICATIONS | |||||
| No | Item | No | ltem | ||
| 1 | Power | 25.5HP/18.5KW | 9 | Fuel/Cooling | Diesel/Liquid |
| 2 | Engine Model | Kubota D1105 | 10 | Cylinders | 3 |
| 3 | Operating Capacity(35%) | 291kg | 11 | Max travel speed | 7.2km/hr |
| 4 | Operating Weight(With Bucket) |
1590kg | 12 | Steering and Drive | single joystick |
| 5 | Ground Pressure | 0.25psi(3.7mm) | 13 | Transmission | Hydrostatic track drice system |
| 6 | Dump height | 1879mm | 14 | Hydraulic Tank Capacity |
9.0gal (34L) |
| 7 | Engine displacement | 1.123L | 15 | System Valtage | 12V |
| 8 | Air Cleaner | Heavy -duty dual element |
16 | Working Hydrostatic Pressure |
3379psi(233bar) |
